Inverter is a core equipment in the fields of photovoltaic power generation, energy storage systems, and electric vehicles. Its main functions include: direct current (DC) to alternating current (AC) conversion, maximum power point tracking, grid interaction and safety protection, energy management and system integration. Inverters are the "heart" of new energy systems, not only completing DC-AC conversion, but also achieving safe, efficient, and controllable power output through MPPT optimization, grid interaction, and intelligent management.
Conversion rate: up to 97.6%
Photovoltaic modules: support 160% over configuration, with strong performance
Protection level: IP65 supports indoor and outdoor use, ensuring peace of mind
Remote monitoring: realize real-time viewing of power generation and fault alarms through the APP
Overvoltage/undervoltage protection (OVP/UVP), overcurrent protection (OCP)
Anti islanding protection and short circuit protection (SCP)
· SPWM (Sinusoidal Pulse Width Modulation)
· SVPWM (Space Vector Modulation)
· MPPT algorithm: perturbation observation method, conductance increment method
· Phase Locked Loop (PLL): Grid Synchronization Technology
Compact: High power density layout
IP65 protection: outdoor dustproof and waterproof
Flexible design, exquisite beauty
Load recognition: automatically adjust output power
Fault self diagnosis: real-time alarm and recording
OTA upgrade: remote firmware update
• Conversion efficiency: 97.6% maximum conversion rate;
• THD:<3% Output harmonic distortion;
• Power factor: 0.8 lead -0.8 lag
• Response time:＜20ms Load mutation adaptation
• UPS switching time:＜10ms

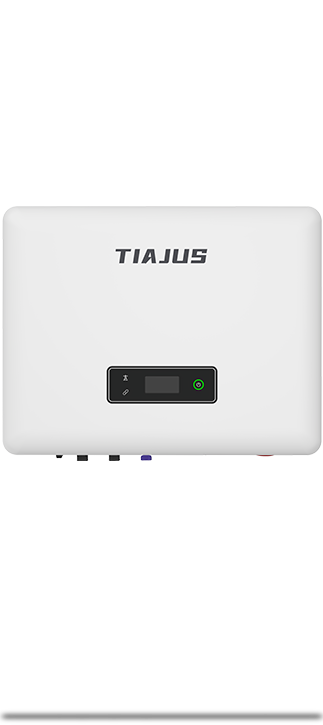

• Household inverter: DC to AC conversion
