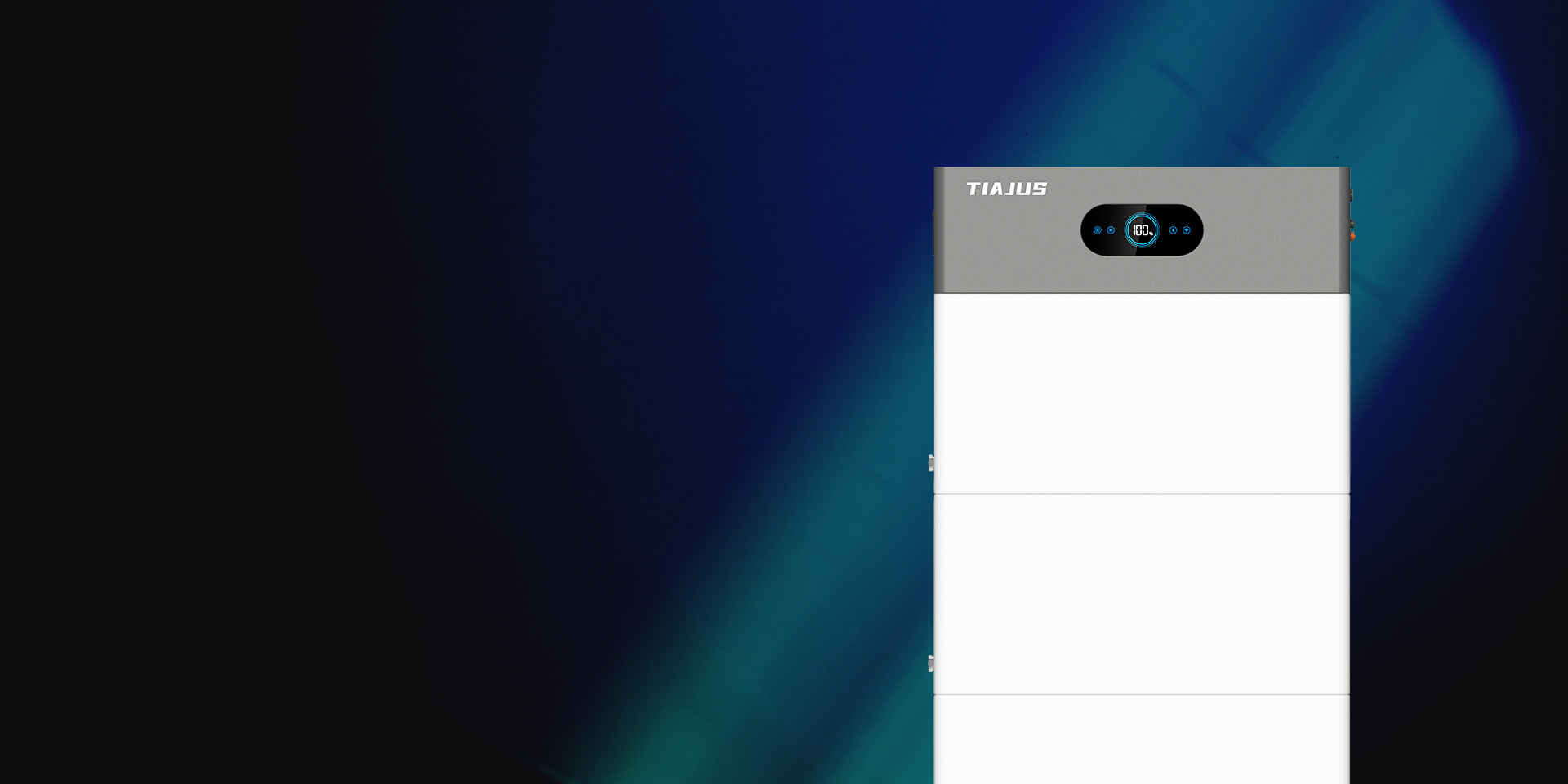

Household energy storage system is a small-scale energy storage solution designed for household users, usually used in conjunction with rooftop photovoltaics to achieve self use, peak valley arbitrage, emergency backup power and other functions. The system capacity is generally 5kWh~30kWh, using safe and efficient lithium iron phosphate (LFP) batteries, paired with inverters, smart meters, and energy management systems, supporting off grid/grid dual mode operation.
Stackable design, wireless connection easy to install, space saving
Strong scalability, allowing for free selection of 10-20 kWh of electricity
LP65 design, suitable for outdoor environments
Built in heating/consumption module, intelligent and safer
Minimalist design, ultra-high cost-effectiveness
Over 6000 charge/discharge cycle life
· IP65 protection level: dustproof and waterproof for outdoor installation.
· Multiple protection mechanisms: overvoltage/overcurrent/short circuit/over temperature protection.
· Fire protection design: optional thermal runaway warning+aerosol fire extinguishing.

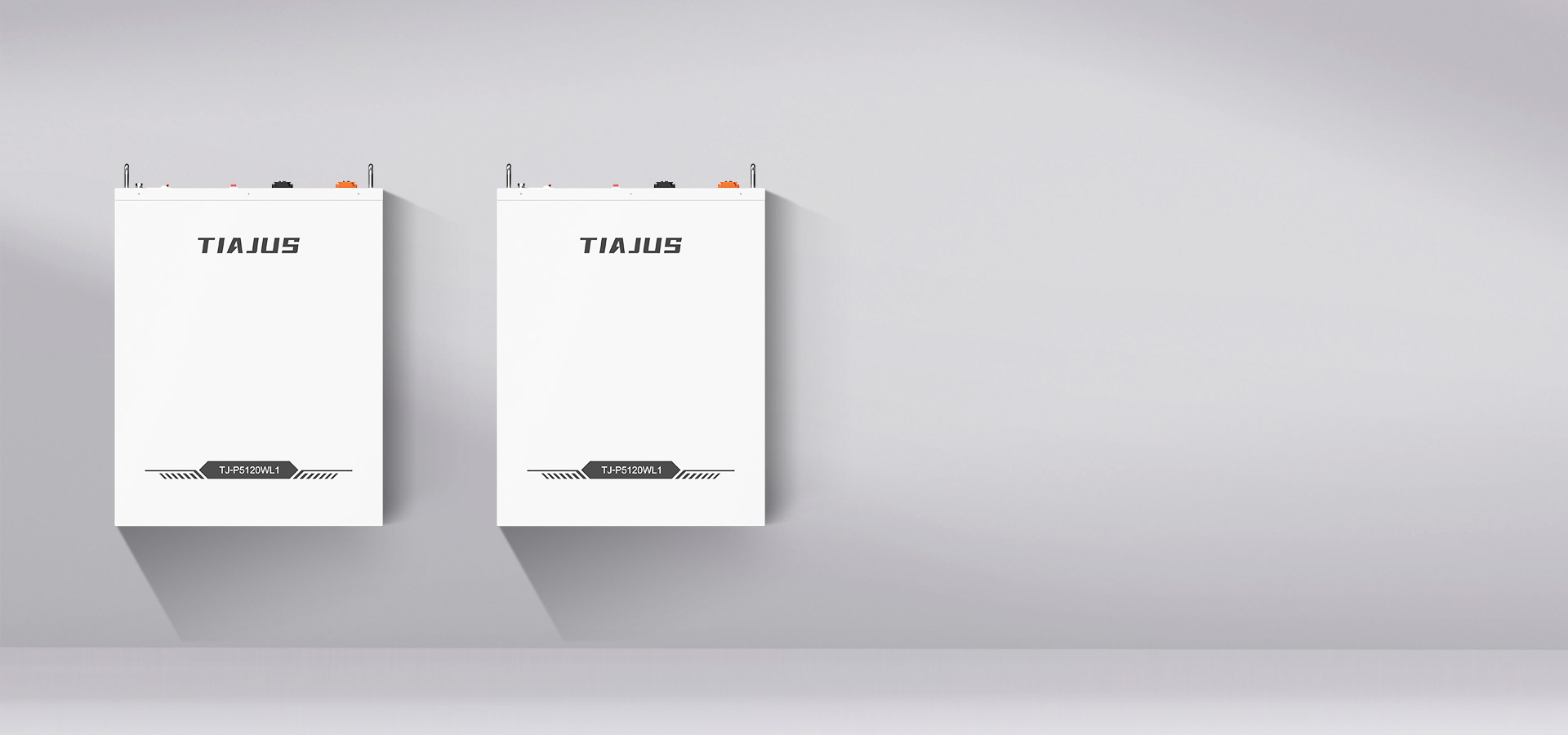

Wall mounted/floor standing installation: saves space and is suitable for home scenes
Plug in terminal block: simplifying installation process
OTA remote upgrade: continuous optimization of system algorithms
Peak Valley Arbitrage (TOU): Automatic low charging and high discharging, saving electricity costs, APP remote control: real-time monitoring of power generation/consumption/energy storage data.
VPP (Virtual Power Plant) compatibility: Participate in grid demand response.
· Rated capacity (KWh) 5.12
· Working voltage range (V): 43.2~58.4
· Protection level: IP20
· Capacity range: 5-30kWh (supports stacking expansion)
· Charge and discharge current: standard 50, maximum 100
