The charging station business of Tianjiu Energy has been implemented in multiple scenarios such as urban core areas/transportation hub charging stations, heavy-duty truck charging, and full area/mainline charging networks, covering multiple categories such as integrated DC stations, split DC stations, charging terminals, and integrated charging stations. Tianjiu Energy has the ability to build a "full site" and provide "full stack" services, offering a one-stop solution that integrates photovoltaics, energy storage, charging, distribution, and testing. It also provides consulting, site selection, design, and other services EPC， To provide full lifecycle services for products, solutions, and operations.
Adopting a scientific ventilation plan
Ensure module ventilation volume
Control internal temperature to improve module efficiency and stability
Support 200V~1000V DC charging output
300V~1000V constant power charging output, can charge various types of passenger cars and large vehicles
The system is equipped with a 30/40kW constant power charging module, with a maximum output voltage of 1000V
System compatible with power expansion within the range of 80-120kW
· Good compatibility and adaptability, supporting the 2023 new national standard
· BMS auxiliary power supply 12V/24V is optional, suitable for different vehicle needs.
· No need for debugging: The vehicle pile is intelligently interconnected, compatible with national standard models on the market, stable to use, and does not require debugging.
Positive and negative busbars are equipped with DC contactors, and positive busbars are equipped with fuses
Equipped with emergency stop protection button, input surge protector, leakage protection circuit breaker
Grounding and insulation detection monitoring safety protection devices, with dual software and hardware protection
Deep interaction with the vehicle BMS, different from the traditional "blind charging" state of charging piles, actively participating in the monitoring of the charging process
Ensure multi-party safety and provide effective protection for people, vehicles, and piles

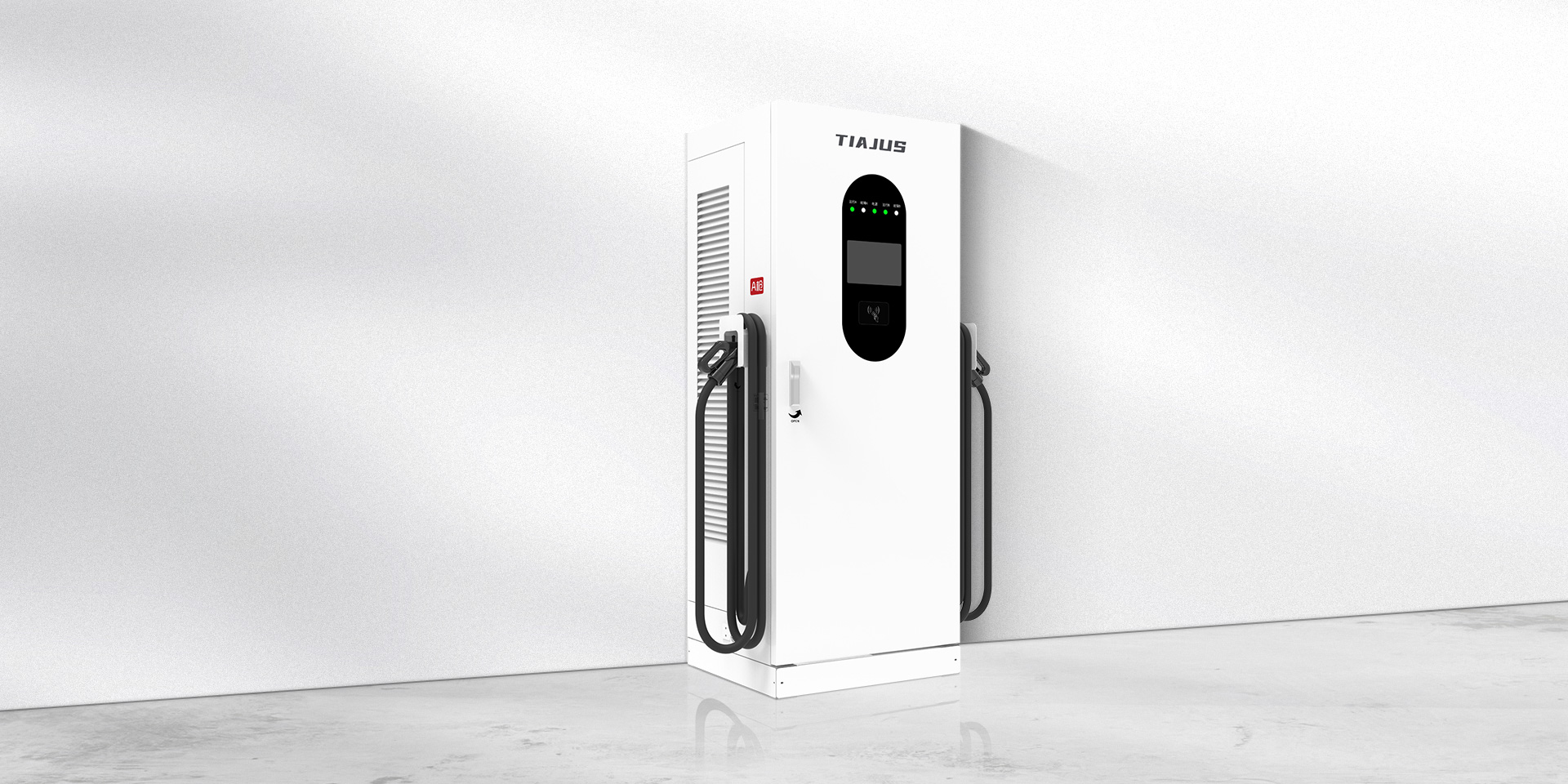

Supporting fast charging of pure electric vehicles such as small and medium-sized buses and passenger cars, it can be widely used in public parking lots, residential parking lots, office building parking lots, shopping malls and other electric vehicle charging places.
Supporting fast charging of pure electric vehicles such as small and medium-sized buses and passenger cars, it can be widely used in public parking lots, residential parking lots, office building parking lots, shopping malls and other electric vehicle charging places.

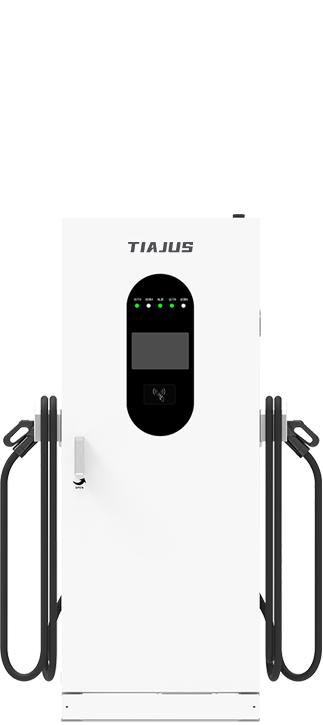

• Dimensions (W * D * H): 750 * 240 * 1550mm
• Protection level: IP55
• Protection level: IP55
• Number of charging guns: 1/2
• Auxiliary power supply: 12V/24V (optional)
• Power allocation: intelligent allocation
